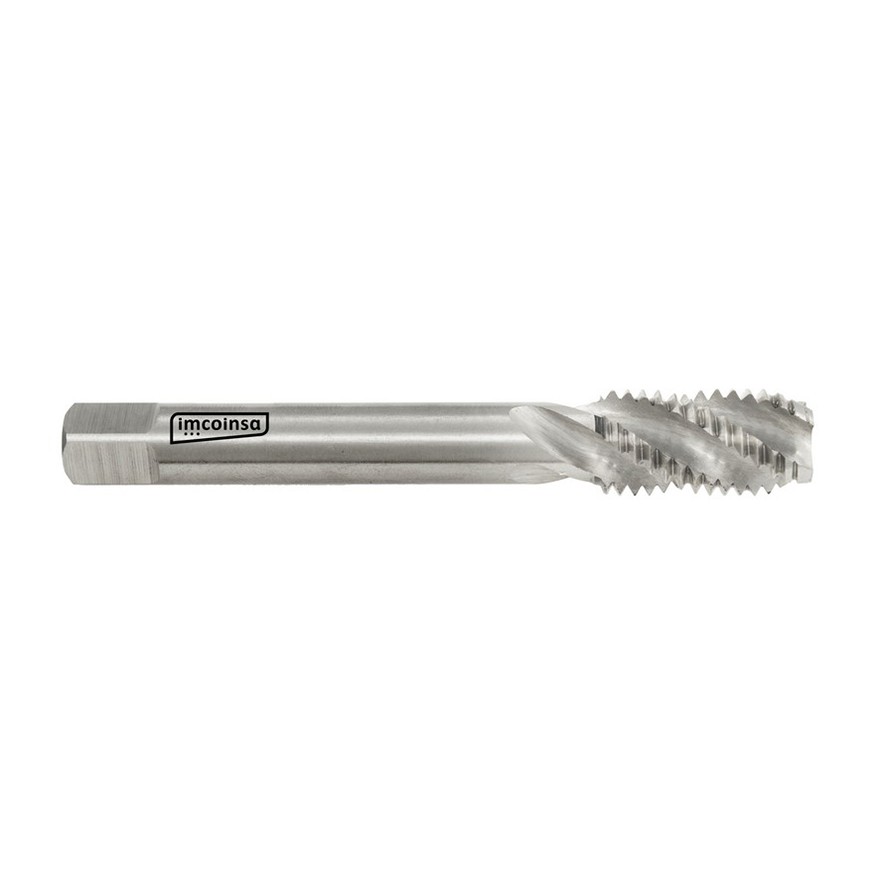

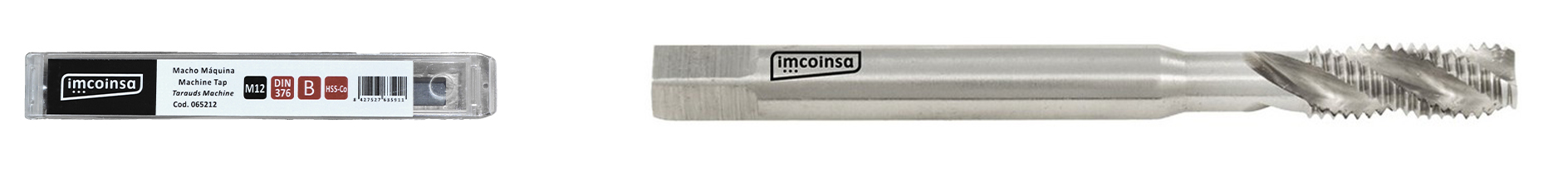

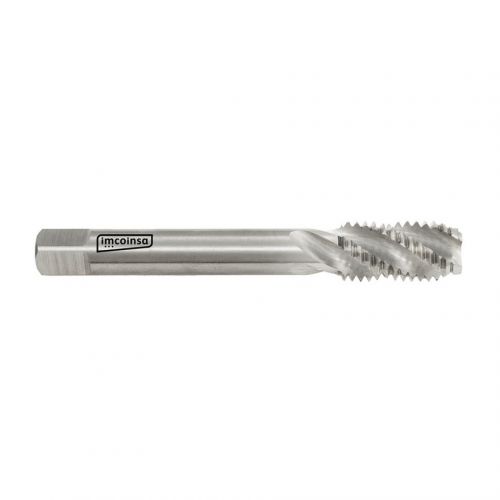

HSS rosca métrica DIN 376 Imcoinsa
Para materiales duros hasta 900 N/mm².
Forma B.
Incluye agujeros pasantes.
Referencias
| Referencia | D mm | L1 mm | L2 mm | D2 mm | mm | |
|---|---|---|---|---|---|---|
| 064612 | M 12 x 1,75 | 110 | 29 | 9 | 7 | consultar |
| 064614 | M 14 x 2,0 | 110 | 30 | 11 | 9 | consultar |
| 064616 | M 16 x 2,0 | 110 | 32 | 11 | 9 | consultar |
| 064618 | M 18 x 2,50 | 125 | 34 | 14 | 11 | consultar |
| 064620 | M 20 x 2,50 | 140 | 34 | 16 | 12 | consultar |
| 064622 | M 22 x 2,50 | 140 | 34 | 18 | 14.5 | consultar |
| 064624 | M 24 x 3,00 | 160 | 38 | 18 | 14.5 | consultar |
