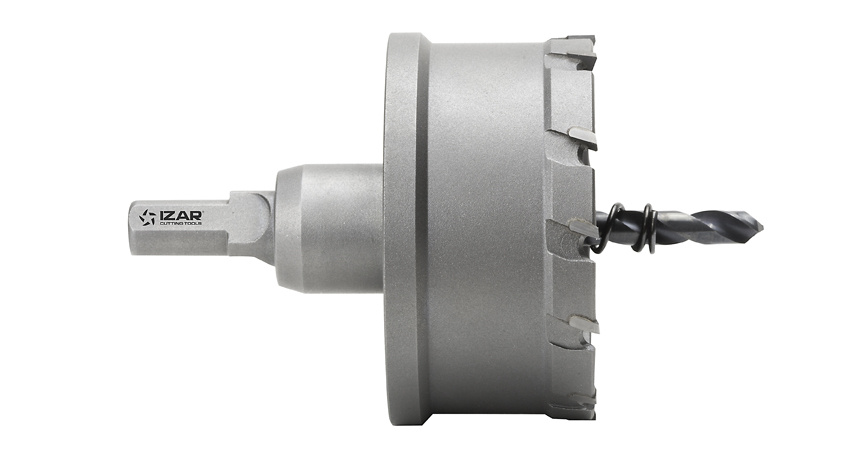

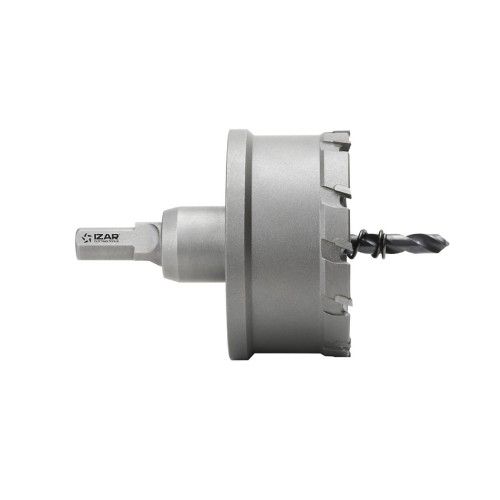

REF. 1665 CORONA METAL DURO INOX
- Especial Inoxidable
- Apta para pvc, fibra de vidrio, aceros estándar, aluminio y plástico
- Diente de Metal Duro
- Posibilidad de Expositor tipo linea para panel perforado
D mm Broca: 6
Grupo Materiales Trabajo: Aceros <850 N/mm2//Inoxidable//Plásticos
Material específico Trabajo: Aceros <850 N/mm2//Fibra Vidrio//Inoxidable//Plásticos//PVC
Espesor Material máximo: 5
Operación: Taladrado
Tipo Herramienta: Coronas
Referencias

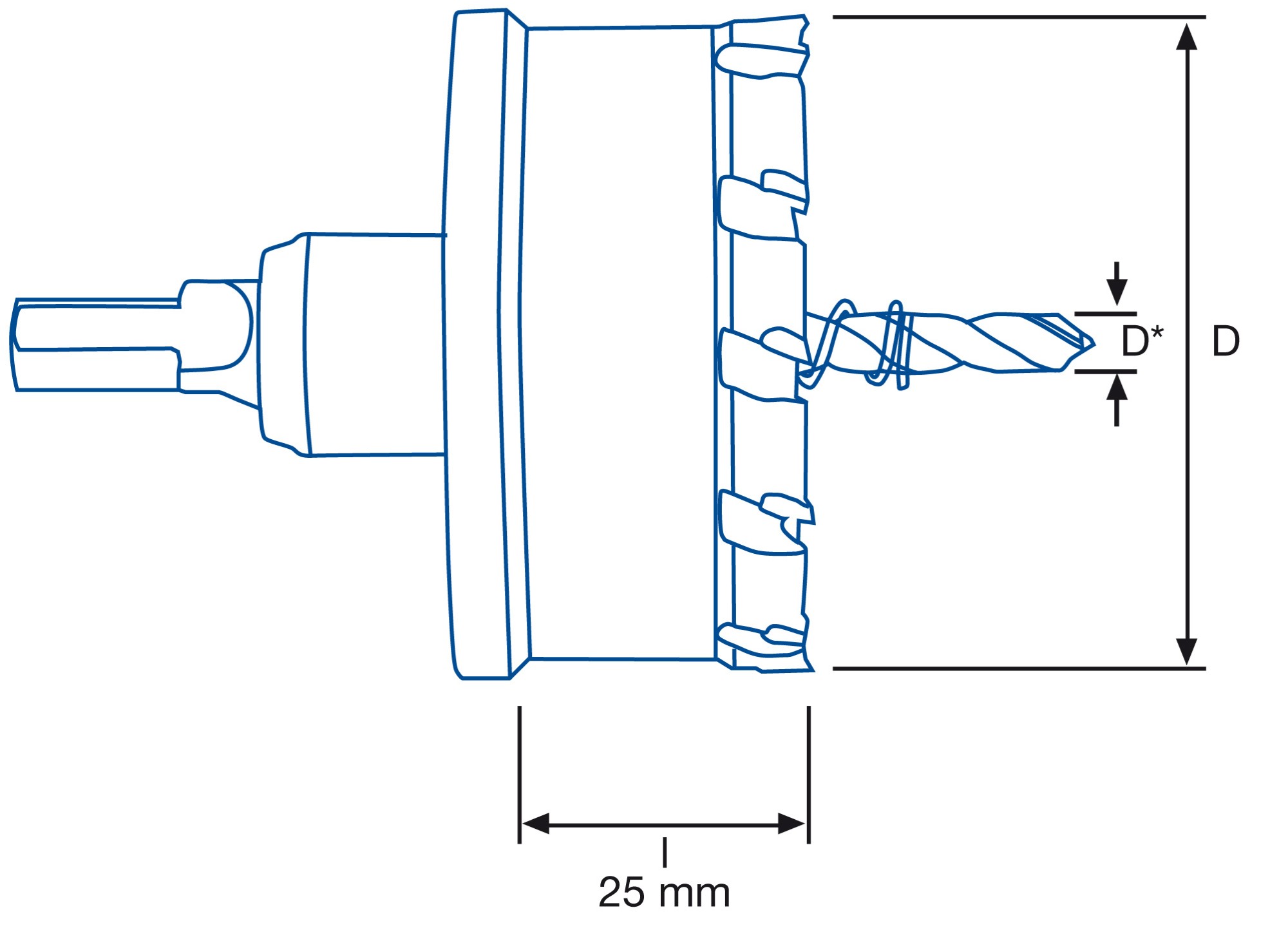

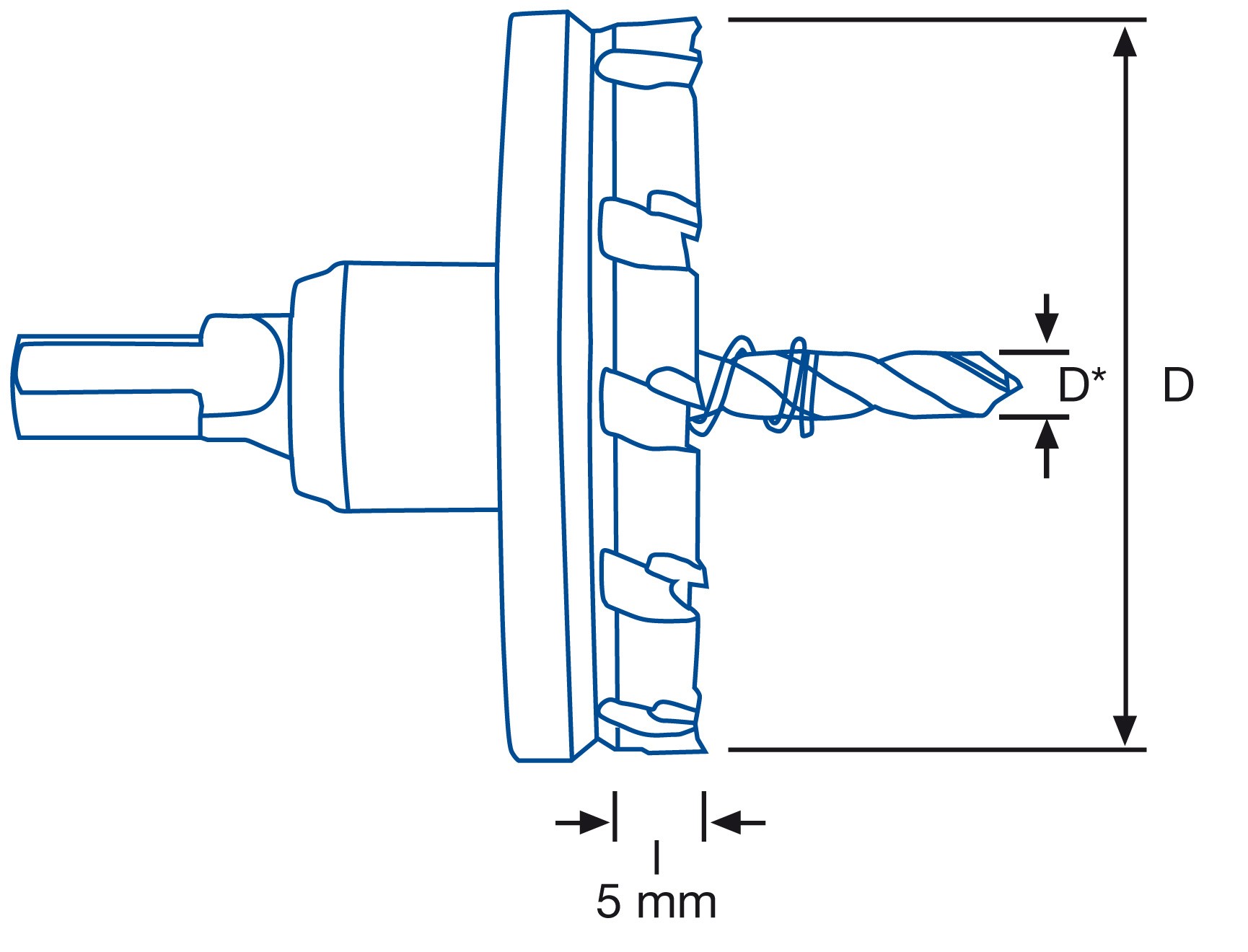

| Referencia | Longitud Útil | Diámetro Corte | Diámetro Mango | l mm Broca | Pulgadas | |
|---|---|---|---|---|---|---|
| 60660 | 5 x 00 | 14mm | 10mm | 48mm | 9/16 | consultar |
| 60661 | 5 x 00 | 16mm | 10mm | 48mm | 5/8 | consultar |
| 60642 | 25 | 16mm | 10mm | 76mm | 5/8 | consultar |
| 60643 | 25 | 17mm | 10mm | 76mm | 11/16 | consultar |
| 60662 | 5 x 00 | 18mm | 10mm | 48mm | 23/32 | consultar |
| 13796 | 25 | 18mm | 10mm | 76mm | 23/32 | consultar |
| 60645 | 25 | 19mm | 10mm | 76mm | 3/4 | consultar |
| 60663 | 5 x 00 | 20mm | 10mm | 48mm | 25/32 | consultar |
| 13798 | 25 | 20mm | 10mm | 76mm | 25/32 | consultar |
| 13799 | 25 | 21mm | 10mm | 76mm | 13/16 | consultar |
| 60664 | 5 x 00 | 22mm | 10mm | 48mm | 7/8 | consultar |
| 13800 | 25 | 22mm | 10mm | 76mm | 7/8 | consultar |
| 13801 | 25 | 23mm | 10mm | 76mm | 14/16 | consultar |
| 13802 | 25 | 24mm | 10mm | 76mm | 15/16 | consultar |
| 60666 | 5 x 00 | 25mm | 10mm | 48mm | 1 | consultar |
| 13803 | 25 | 25mm | 10mm | 76mm | 1 | consultar |
| 13804 | 25 | 26mm | 10mm | 76mm | 1 1/32 | consultar |
| 13805 | 25 | 27mm | 10mm | 76mm | 1 1/16 | consultar |
| 13806 | 25 | 28mm | 10mm | 76mm | 1 3/32 | consultar |
| 13807 | 25 | 29mm | 10mm | 76mm | 1 1/8 | consultar |
| 60667 | 5 x 00 | 30mm | 10mm | 48mm | 1 3/16 | consultar |
| 13808 | 25 | 30mm | 10mm | 76mm | 1 3/16 | consultar |
| 13809 | 25 | 31mm | 10mm | 76mm | 1 7/32 | consultar |
| 60668 | 5 x 00 | 32mm | 10mm | 48mm | 1 1/4 | consultar |
| 13810 | 25 | 32mm | 10mm | 76mm | 1 1/4 | consultar |
| 13811 | 25 | 33mm | 10mm | 76mm | 1 5/16 | consultar |
| 13812 | 25 | 34mm | 10mm | 76mm | 1 11/32 | consultar |
| 60669 | 5 x 00 | 35mm | 10mm | 48mm | 1 3/8 | consultar |
| 13813 | 25 | 35mm | 10mm | 76mm | 1 3/8 | consultar |
| 60646 | 25 | 36mm | 10mm | 76mm | 1 13/32 | consultar |
| 60647 | 25 | 37mm | 10mm | 76mm | 1 7/16 | consultar |
| 13816 | 25 | 38mm | 10mm | 76mm | 1 1/2 | consultar |
| 60648 | 25 | 39mm | 10mm | 76mm | 1 17/32 | consultar |
| 60670 | 5 x 00 | 40mm | 10mm | 48mm | 1 9/16 | consultar |
| 13818 | 25 | 40mm | 10mm | 76mm | 1 9/16 | consultar |
| 60649 | 25 | 41mm | 10mm | 76mm | 1 5/8 | consultar |
| 13820 | 25 | 42mm | 10mm | 76mm | 1 21/32 | consultar |
| 60652 | 25 | 43mm | 10mm | 76mm | 1 11/16 | consultar |
| 60650 | 25 | 44mm | 10mm | 76mm | 1 3/4 | consultar |
| 60671 | 5 x 00 | 45mm | 10mm | 48mm | 1 25/32 | consultar |
| 13823 | 25 | 45mm | 10mm | 76mm | 1 25/32 | consultar |
| 60672 | 5 x 00 | 50mm | 10mm | 48mm | - | consultar |
| 13828 | 25 | 50mm | 10mm | 76mm | - | consultar |
| 13830 | 25 | 52mm | 10mm | 76mm | 2 1/16 | consultar |
| 13831 | 25 | 53mm | 10mm | 76mm | 2 3/32 | consultar |
| 13833 | 25 | 55mm | 10mm | 76mm | - | consultar |
| 60673 | 5 x 00 | 60mm | 10mm | 48mm | 2 3/8 | consultar |
| 13838 | 25 | 60mm | 10mm | 76mm | 2 3/8 | consultar |
| 13841 | 25 | 63mm | 10mm | 76mm | - | consultar |
| 60651 | 25 | 65mm | 10mm | 76mm | 2 9/16 | consultar |
| 60653 | 25 | 70mm | 10mm | 76mm | 2 3/4 | consultar |
| 60654 | 25 | 75mm | 10mm | 76mm | - | consultar |
| 60655 | 25 | 80mm | 13mm | 76mm | - | consultar |
| 60656 | 25 | 85mm | 13mm | 76mm | - | consultar |
| 60657 | 25 | 90mm | 13mm | 76mm | - | consultar |
| 60658 | 25 | 95mm | 13mm | 76mm | 3 3/4 | consultar |
| 60659 | 25 | 100mm | 13mm | 76mm | 3 15/16 | consultar |
