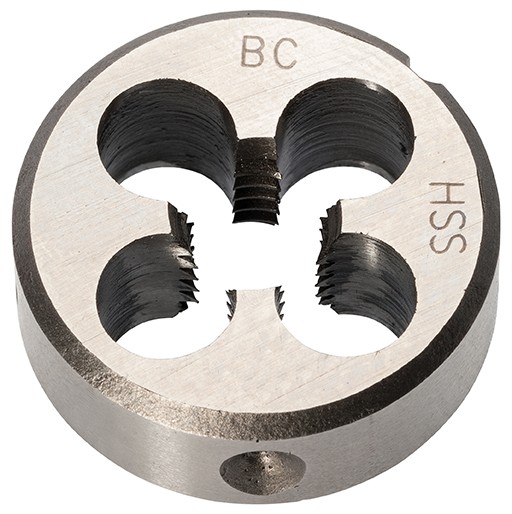

Bohrcraft Terraja M forma B DIN EN 22568 HSS-G
- Para rosca métrica ISO DIN 13
- Forma B = cerrada
Cojinetes DIN EN 22568 HSS-G. Métrica
Para rosca métrica ISO DIN 13
Forma B = cerrada
Tolerancia 6g.
Aptos para uso general, para acero hasta 800 N/mm².
Referencias
| Referencia | Medida | Ø exterior | DIN | Forma | |
|---|---|---|---|---|---|
| 42001100100 | M 1 en BC-UniBox | 16 x 5 mm | EN22568 | Form B | consultar |
| 42001100110 | M 1,1 en BC-UniBox | 16 x 5 mm | EN22568 | Form B | consultar |
| 42001100120 | M 1,2 en BC-UniBox | 16 x 5 mm | EN22568 | Form B | consultar |
| 42001100140 | M 1,4 en BC-UniBox | 16 x 5 mm | EN22568 | Form B | consultar |
| 42001100160 | M 1,6 en BC-UniBox | 16 x 5 mm | EN22568 | Form B | consultar |
| 42001100170 | M 1,7 en BC-UniBox | 16 x 5 mm | EN22568 | Form B | consultar |
| 42001100180 | M 1,8 en BC-UniBox | 16 x 5 mm | EN22568 | Form B | consultar |
| 42001100200 | M 2 en BC-UniBox | 16 x 5 mm | EN22568 | Form B | consultar |
| 42001100220 | M 2,2 en BC-UniBox | 16 x 5 mm | EN22568 | Form B | consultar |
| 42001100230 | M 2,3 en BC-UniBox | 16 x 5 mm | EN22568 | Form B | consultar |
| 42001100250 | M 2,5 en BC-UniBox | 16 x 5 mm | EN22568 | Form B | consultar |
| 42001100260 | M 2,6 en BC-UniBox | 16 x 5 mm | EN22568 | Form B | consultar |
| 42001100300 | M 3 en BC-UniBox | 20 x 5 mm | EN22568 | Form B | consultar |
| 42001100350 | M 3,5 en BC-UniBox | 20 x 5 mm | EN22568 | Form B | consultar |
| 42001100400 | M 4 en BC-UniBox | 20 x 5 mm | EN22568 | Form B | consultar |
| 42001100500 | M 5 en BC-UniBox | 20 x 7 mm | EN22568 | Form B | consultar |
| 42001100600 | M 6 en BC-UniBox | 20 x 7 mm | EN22568 | Form B | consultar |
| 42001100700 | M 7 en BC-UniBox | 25 x 9 mm | EN22568 | Form B | consultar |
| 42001100800 | M 8 en BC-UniBox | 25 x 9 mm | EN22568 | Form B | consultar |
| 42001100900 | M 9 en BC-UniBox | 25 x 9 mm | EN22568 | Form B | consultar |
| 42001101000 | M 10 en BC-UniBox | 30 x 11 mm | EN22568 | Form B | consultar |
| 42001101200 | M 12 en BC-UniBox | 38 x 14 mm | EN22568 | Form B | consultar |
| 42001101400 | M 14 en BC-UniBox | 38 x 14 mm | EN22568 | Form B | consultar |
| 42001101600 | M 16 en BC-UniBox | 45 x 18 mm | EN22568 | Form B | consultar |
| 42001101800 | M 18 en BC-UniBox | 45 x 18 mm | EN22568 | Form B | consultar |
| 42001102000 | M 20 en BC-UniBox | 45 x 18 mm | EN22568 | Form B | consultar |
| 42001102200 | M 22 en BC-UniBox | 55 x 22 mm | EN22568 | Form B | consultar |
| 42001102400 | M 24 en BC-UniBox | 55 x 22 mm | EN22568 | Form B | consultar |
| 42001102700 | M 27 en BC-UniBox | 65 x 25 mm | EN22568 | Form B | consultar |
| 42001103000 | M 30 en BC-UniBox | 65 x 25 mm | EN22568 | Form B | consultar |
| 42001103300 | M 33 en BC-UniBox | 65 x 25 mm | EN22568 | Form B | consultar |
| 42001103600 | M 36 en BC-UniBox | 65 x 25 mm | EN22568 | Form B | consultar |
| 42001103900 | M 39 en BC-UniBox | 75 x 30 mm | EN22568 | Form B | consultar |
| 42001104200 | M 42 en BC-UniBox | 75 x 30 mm | EN22568 | Form B | consultar |
| 42001104500 | M 45 en BC-UniBox | 90 x 36 mm | EN22568 | Form B | consultar |
| 42001104800 | M 48 en BC-UniBox | 90 x 36 mm | EN22568 | Form B | consultar |
| 42001105200 | M 52 en BC-UniBox | 90 x 36 mm | EN22568 | Form B | consultar |
