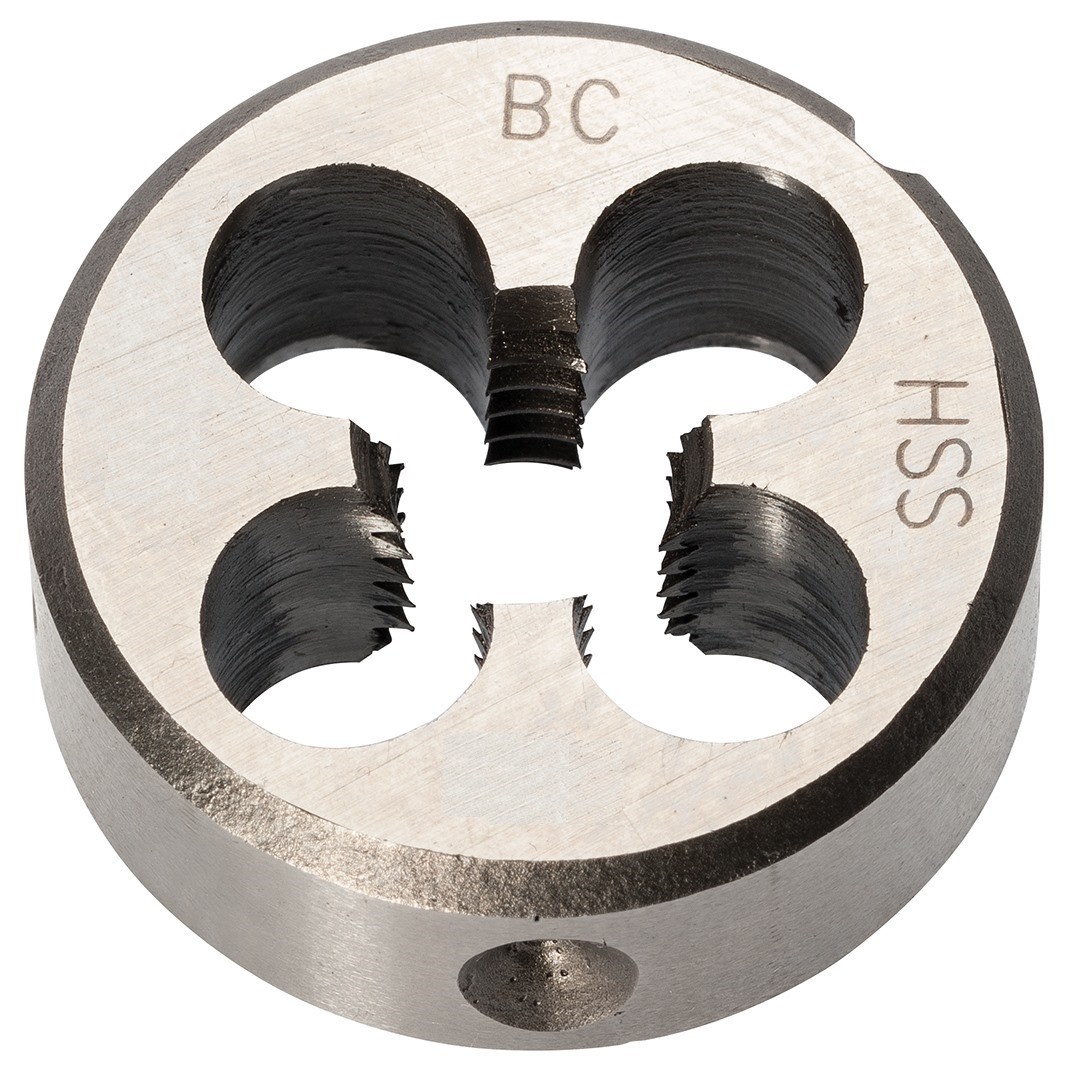

Bohrcraft Terraja MF forma B DIN EN 22568 HSS-G
- Para rosca métrica ISO DIN 13
- Forma B = cerrada
Cojinetes DIN EN 22568 HSS-G. Métrica Fina (MF)
Para rosca métrica ISO DIN 13
Forma B = cerrada
Tolerancia 6g.
Aptos para uso general, para acero hasta 800 N/mm².
Referencias
| Referencia | Medida | Ø exterior | DIN | Forma | |
|---|---|---|---|---|---|
| 42021100303 | MF 3 x 0,35 en BC-UniBox | 20 x 5 mm | EN22568 | Form B | consultar |
| 42021100403 | MF 4 x 0,35 en BC-UniBox | 20 x 5 mm | 22568 | Form B | consultar |
| 42021100405 | MF 4 x 0,5 en BC-UniBox | 20 x 5 mm | EN22568 | Form B | consultar |
| 42021100505 | MF 5 x 0,5 en BC-UniBox | 20 x 5 mm | EN22568 | Form B | consultar |
| 42021100507 | MF 5 x 0,75 en BC-UniBox | 20 x 7 mm | 22568 | Form B | consultar |
| 42021100605 | MF 6 x 0,5 en BC-UniBox | 20 x 5 mm | EN22568 | Form B | consultar |
| 42021100607 | MF 6 x 0,75 en BC-UniBox | 20 x 7 mm | EN22568 | Form B | consultar |
| 42021100707 | MF 7 x 0,75 en BC-UniBox | 20 x 7 mm | 22568 | Form B | consultar |
| 42021100805 | MF 8 x 0,50 en BC-UniBox | 25 x 9 mm | 22568 | Form B | consultar |
| 42021100807 | MF 8 x 0,75 en BC-UniBox | 25 x 9 mm | EN22568 | Form B | consultar |
| 42021100810 | MF 8 x 1,0 en BC-UniBox | 25 x 9 mm | EN22568 | Form B | consultar |
| 42021100907 | MF 9 x 0,75 en BC-UniBox | 25 x 9 mm | 22568 | Form B | consultar |
| 42021100910 | MF 9 x 1,0 en BC-UniBox | 25 x 9 mm | EN22568 | Form B | consultar |
| 42021101007 | MF 10 x 0,75 en BC-UniBox | 30 x 11 mm | EN22568 | Form B | consultar |
| 42021101010 | MF 10 x 1,0 en BC-UniBox | 30 x 11 mm | EN22568 | Form B | consultar |
| 42021101012 | MF 10 x 1,25 en BC-UniBox | 30 x 11 mm | EN22568 | Form B | consultar |
| 42021101110 | MF 11 x 1,00 en BC-UniBox | 30 x 11 mm | 22568 | Form B | consultar |
| 42021101112 | MF 11 x 1,25 en BC-UniBox | 30 x 11 mm | 22568 | Form B | consultar |
| 42021101207 | MF 12 x 0,75 en BC-UniBox | 38 x 10 mm | 22568 | Form B | consultar |
| 42021101210 | MF 12 x 1,0 en BC-UniBox | 38 x 10 mm | EN22568 | Form B | consultar |
| 42021101212 | MF 12 x 1,25 en BC-UniBox | 38 x 10 mm | EN22568 | Form B | consultar |
| 42021101215 | MF 12 x 1,5 en BC-UniBox | 38 x 10 mm | EN22568 | Form B | consultar |
| 42021101310 | MF 13 x 1,00 en BC-UniBox | 38 x 10 mm | 22568 | Form B | consultar |
| 42021101315 | MF 13 x 1,50 en BC-UniBox | 38 x 10 mm | 22568 | Form B | consultar |
| 42021101407 | MF 14 x 0,75 en BC-UniBox | 38 x 10 mm | 22568 | Form B | consultar |
| 42021101410 | MF 14 x 1,0 en BC-UniBox | 38 x 10 mm | EN22568 | Form B | consultar |
| 42021101412 | MF 14 x 1,25 en BC-UniBox | 38 x 10 mm | EN22568 | Form B | consultar |
| 42021101415 | MF 14 x 1,5 en BC-UniBox | 38 x 10 mm | EN22568 | Form B | consultar |
| 42021101510 | MF 15 x 1,00 en BC-UniBox | 38 x 10 mm | 22568 | Form B | consultar |
| 42021101515 | MF 15 x 1,50 en BC-UniBox | 38 x 10 mm | 22568 | Form B | consultar |
| 42021101610 | MF 16 x 1,0 en BC-UniBox | 45 x 14 mm | EN22568 | Form B | consultar |
| 42021101612 | MF 16 x 1,25 en BC-UniBox | 45 x 14 mm | EN22568 | Form B | consultar |
| 42021101615 | MF 16 x 1,5 en BC-UniBox | 45 x 14 mm | EN22568 | Form B | consultar |
| 42021101810 | MF 18 x 1,0 en BC-UniBox | 45 x 14 mm | EN22568 | Form B | consultar |
| 42021101812 | MF 18 x 1,25 en BC-UniBox | 45 x 14 mm | 22568 | Form B | consultar |
| 42021101815 | MF 18 x 1,5 en BC-UniBox | 45 x 14 mm | EN22568 | Form B | consultar |
| 42021101820 | MF 18 x 2,0 en BC-UniBox | 45 x 14 mm | EN22568 | Form B | consultar |
| 42021102010 | MF 20 x 1,0 en BC-UniBox | 45 x 14 mm | EN22568 | Form B | consultar |
| 42021102012 | MF 20 x 1,25 en BC-UniBox | 45 x 14 mm | 22568 | Form B | consultar |
| 42021102015 | MF 20 x 1,5 en BC-UniBox | 45 x 14 mm | EN22568 | Form B | consultar |
| 42021102020 | MF 20 x 2,0 en BC-UniBox | 45 x 14 mm | EN22568 | Form B | consultar |
| 42021102210 | MF 22 x 1,00 en BC-UniBox | 55 x 16 mm | 22568 | Form B | consultar |
| 42021102215 | MF 22 x 1,5 en BC-UniBox | 55 x 16 mm | EN22568 | Form B | consultar |
| 42021102220 | MF 22 x 2,00 en BC-UniBox | 55 x 16 mm | 22568 | Form B | consultar |
| 42021102410 | MF 24 x 1,00 en BC-UniBox | 55 x 16 mm | 22568 | Form B | consultar |
| 42021102412 | MF 24 x 1,25 en BC-UniBox | 55 x 16 mm | 22568 | Form B | consultar |
| 42021102415 | MF 24 x 1,5 en BC-UniBox | 55 x 16 mm | EN22568 | Form B | consultar |
| 42021102420 | MF 24 x 2,0 en BC-UniBox | 55 x 16 mm | EN22568 | Form B | consultar |
| 42021102515 | MF 25 x 1,5 en BC-UniBox | 55 x 16 mm | EN22568 | Form B | consultar |
| 42021102610 | MF 26 x 1,00 en BC-UniBox | 55 x 16 mm | 22568 | Form B | consultar |
| 42021102615 | MF 26 x 1,5 en BC-UniBox | 55 x 16 mm | EN22568 | Form B | consultar |
| 42021102620 | MF 26 x 2,00 en BC-UniBox | 55 x 16 mm | 22568 | Form B | consultar |
| 42021102715 | MF 27 x 1,5 en BC-UniBox | 65 x 18 mm | EN22568 | Form B | consultar |
| 42021102720 | MF 27 x 2,00 en BC-UniBox | 65 x 18 mm | 22568 | Form B | consultar |
| 42021102815 | MF 28 x 1,5 en BC-UniBox | 65 x 18 mm | EN22568 | Form B | consultar |
| 42021102820 | MF 28 x 2,00 en BC-UniBox | 65 x 18 mm | 22568 | Form B | consultar |
| 42021103010 | MF 30 x 1,00 en BC-UniBox | 65 x 18 mm | 22568 | Form B | consultar |
| 42021103015 | MF 30 x 1,5 en BC-UniBox | 65 x 18 mm | EN22568 | Form B | consultar |
| 42021103020 | MF 30 x 2,0 en BC-UniBox | 65 x 18 mm | EN22568 | Form B | consultar |
| 42021103030 | MF 30 x 3,00 en BC-UniBox | 65 x 25 mm | 22568 | Form B | consultar |
| 42021103215 | MF 32 x 1,5 en BC-UniBox | 65 x 18 mm | EN22568 | Form B | consultar |
| 42021103315 | MF 33 x 1,50 en BC-UniBox | 65 x 18 mm | 22568 | Form B | consultar |
| 42021103320 | MF 33 x 2,00 en BC-UniBox | 65 x 18 mm | 22568 | Form B | consultar |
| 42021103330 | MF 33 x 3,00 en BC-UniBox | 65 x 25 mm | 22568 | Form B | consultar |
| 42021103415 | MF 34 x 1,50 en BC-UniBox | 65 x 18 mm | 22568 | Form B | consultar |
| 42021103420 | MF 34 x 2,00 en BC-UniBox | 65 x 18 mm | 22568 | Form B | consultar |
| 42021103515 | MF 35 x 1,5 en BC-UniBox | 65 x 18 mm | EN22568 | Form B | consultar |
| 42021103615 | MF 36 x 1,5 en BC-UniBox | 65 x 18 mm | EN22568 | Form B | consultar |
| 42021103620 | MF 36 x 2,0 en BC-UniBox | 65 x 18 mm | EN22568 | Form B | consultar |
| 42021103630 | MF 36 x 3,00 en BC-UniBox | 65 x 25 mm | 22568 | Form B | consultar |
| 42021103815 | MF 38 x 1,50 en BC-UniBox | 75 x 20 mm | 22568 | Form B | consultar |
| 42021103915 | MF 39 x 1,50 en BC-UniBox | 75 x 30 mm | 22568 | Form B | consultar |
| 42021103920 | MF 39 x 2,00 en BC-UniBox | 75 x 20 mm | 22568 | Form B | consultar |
| 42021103930 | MF 39 x 3,00 en BC-UniBox | 75 x 30 mm | 22568 | Form B | consultar |
| 42021104015 | MF 40 x 1,5 en BC-UniBox | 75 x 20 mm | EN22568 | Form B | consultar |
| 42021104020 | MF 40 x 2,00 en BC-UniBox | 75 x 20 mm | 22568 | Form B | consultar |
| 42021104030 | MF 40 x 3,00 en BC-UniBox | 75 x 30 mm | 22568 | Form B | consultar |
| 42021104215 | MF 42 x 1,50 en BC-UniBox | 75 x 20 mm | 22568 | Form B | consultar |
| 42021104220 | MF 42 x 2,00 en BC-UniBox | 75 x 20 mm | 22568 | Form B | consultar |
| 42021104230 | MF 42 x 3,00 en BC-UniBox | 75 x 30 mm | 22568 | Form B | consultar |
| 42021104515 | MF 45 x 1,50 en BC-UniBox | 90 x 22 mm | 22568 | Form B | consultar |
| 42021104520 | MF 45 x 2,00 en BC-UniBox | 90 x 22 mm | 22568 | Form B | consultar |
| 42021104530 | MF 45 x 3,00 en BC-UniBox | 90 x 36 mm | 22568 | Form B | consultar |
| 42021104815 | MF 48 x 1,50 en BC-UniBox | 90 x 22 mm | 22568 | Form B | consultar |
| 42021104820 | MF 48 x 2,00 en BC-UniBox | 90 x 22 mm | 22568 | Form B | consultar |
| 42021104830 | MF 48 x 3,00 en BC-UniBox | 90 x 36 mm | 22568 | Form B | consultar |
| 42021105015 | MF 50 x 1,50 en BC-UniBox | 90 x 22 mm | 22568 | Form B | consultar |
| 42021105020 | MF 50 x 2,00 en BC-UniBox | 90 x 22 mm | 22568 | Form B | consultar |
| 42021105030 | MF 50 x 3,00 en BC-UniBox | 90 x 36 mm | 22568 | Form B | consultar |
| 42021105215 | MF 52 x 1,50 en BC-UniBox | 90 x 22 mm | 22568 | Form B | consultar |
| 42021105220 | MF 52 x 2,00 en BC-UniBox | 90 x 22 mm | 22568 | Form B | consultar |
| 42021105230 | MF 52 x 3,00 en BC-UniBox | 90 x 36 mm | 22568 | Form B | consultar |
| 42021106315 | MF 63 x 1,50 en BC-UniBox | 105 x 22 mm | 22568 | Form B | consultar |
