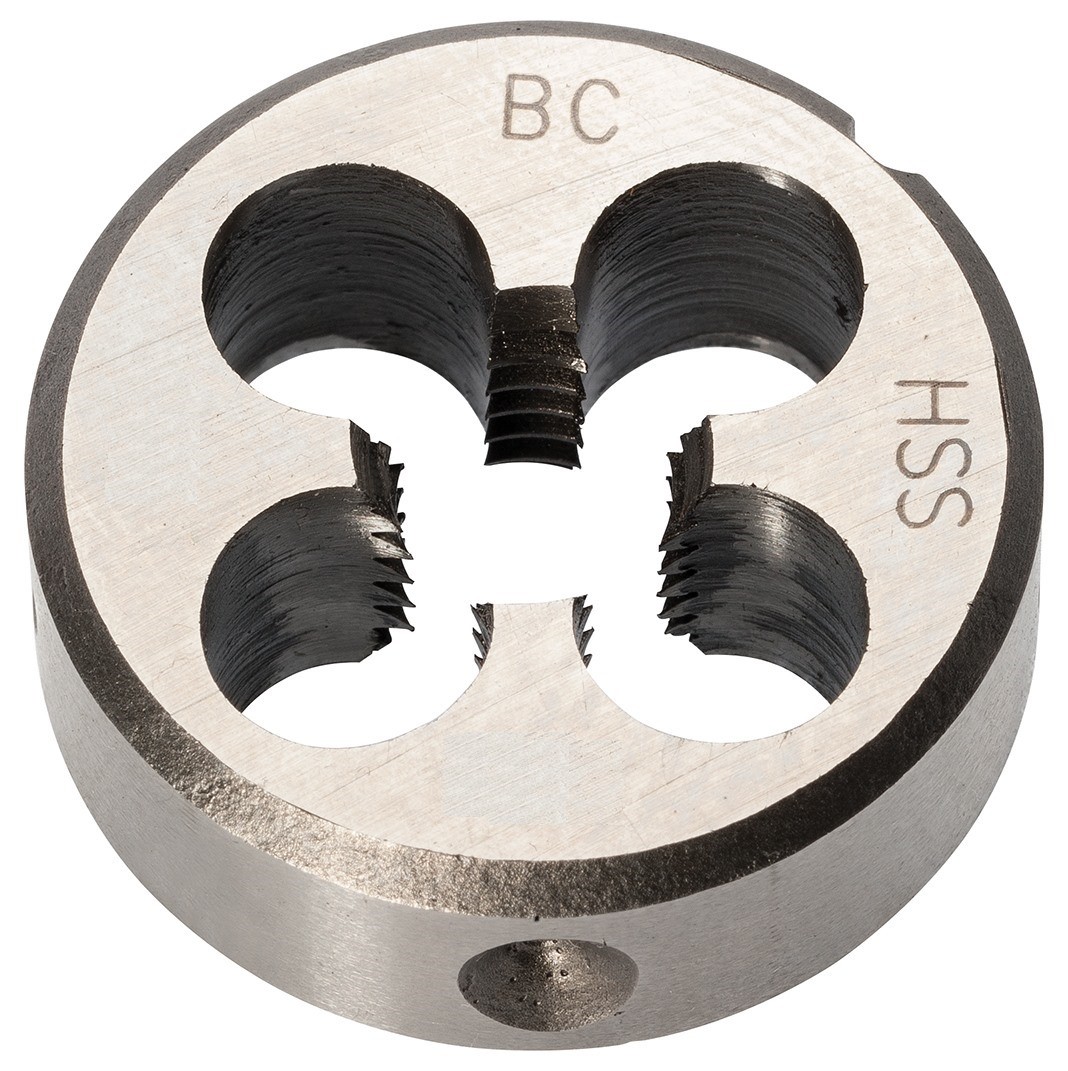

Bohrcraft Terraja G (BSP) forma B DIN EN 24231 HSS-G
- Rosca gas Whitworth DIN ISO 228
- Forma B = cerrada
Cojinetes DIN EN 24231 HSS-G. G (BSP)
Rosca gas Whitworth DIN ISO 228
Forma B = cerrada
Aptos para uso general, para acero hasta 800 N/mm².
Referencias
| Referencia | Medida | Ø exterior | DIN | Forma | |
|---|---|---|---|---|---|
| 42031100012 | G (BSP) 1/2"x14 en BC-UniBox | 45 x 14 mm | EN24231 | Form B | consultar |
| 42031100014 | G (BSP) 1/4"x19 en BC-UniBox | 38 x 10 mm | EN24231 | Form B | consultar |
| 42031100018 | G (BSP) 1/8"x28 en BC-UniBox | 30 x 11 mm | EN24231 | Form B | consultar |
| 42031100034 | G (BSP) 3/4"x14 en BC-UniBox | 55 x 16 mm | EN24231 | Form B | consultar |
| 42031100038 | G (BSP) 3/8"x19 en BC-UniBox | 45 x 14 mm | EN24231 | Form B | consultar |
| 42031100058 | G (BSP) 5/8"x14 en BC-UniBox | 55 x 16 mm | EN24231 | Form B | consultar |
| 42031100078 | G (BSP) 7/8"x14 en BC-UniBox | 65 x 18 mm | EN24231 | Form B | consultar |
| 42031100100 | G (BSP) 1"x11 en BC-UniBox | 65 x 18 mm | EN24231 | Form B | consultar |
| 42031100112 | G (BSP) 1.1/2" x 11 en BC-UniBox | 75 x 30 mm | EN24231 | Form B | consultar |
| 42031100114 | G (BSP) 1.1/4" x 11 en BC-UniBox | 60 x 25 mm | EN24231 | Form B | consultar |
| 42031100200 | G (BSP) 2" x 11 en BC-UniBox | 90 x 36 mm | EN24231 | Form B | consultar |
