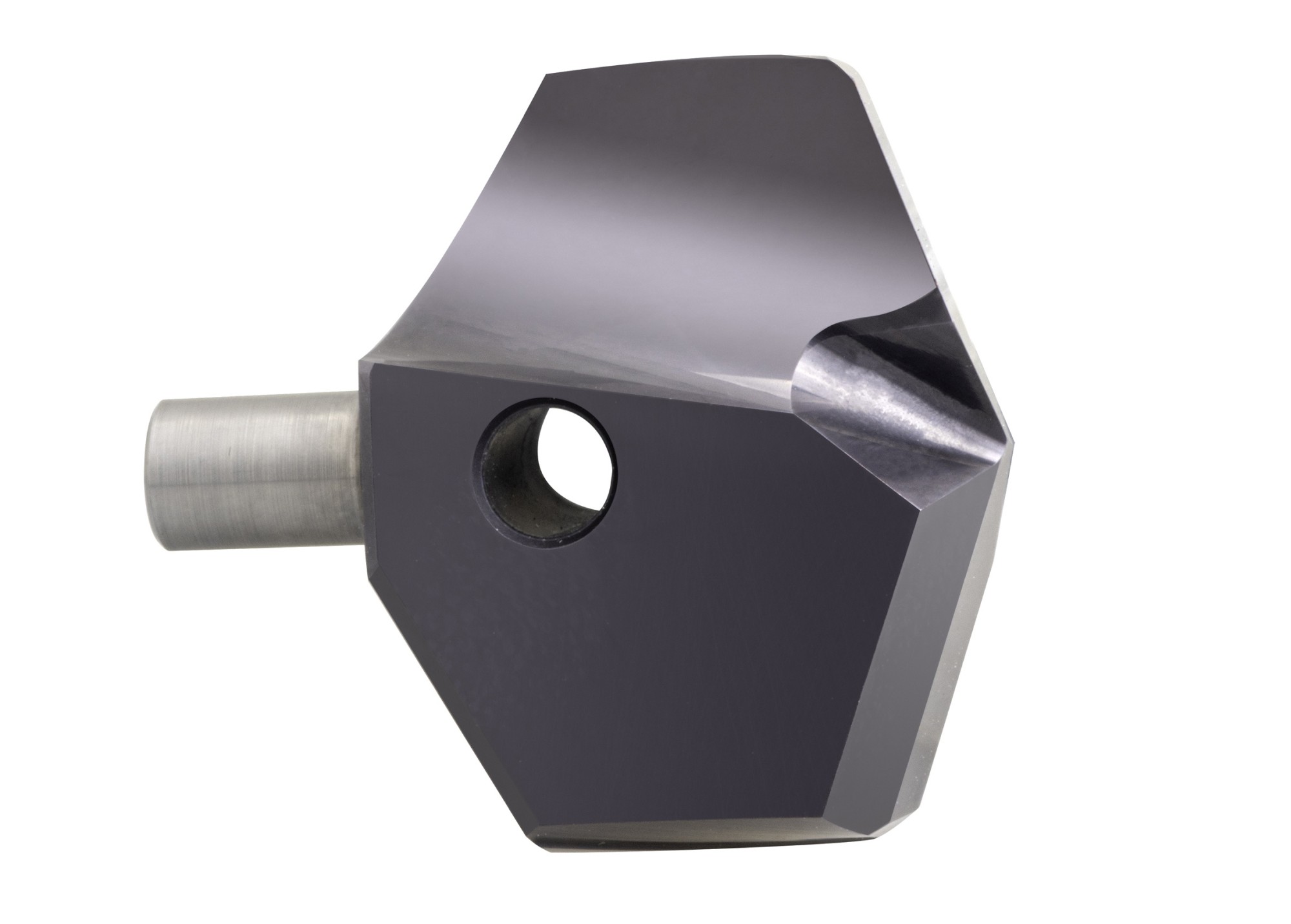

IZAR REF. 8380 CABEZA BROCA PUNTA INTERCAMBIABLE

  1. El inserto intercambiable fácil de manipular, facilita el reemplazo del mismo en la propia máquina.
  2. La construcción del inserto de alta resistencia lo hace apto para taladrar con altos avances.
  3. Especial para trabajo en materiales grupo P.

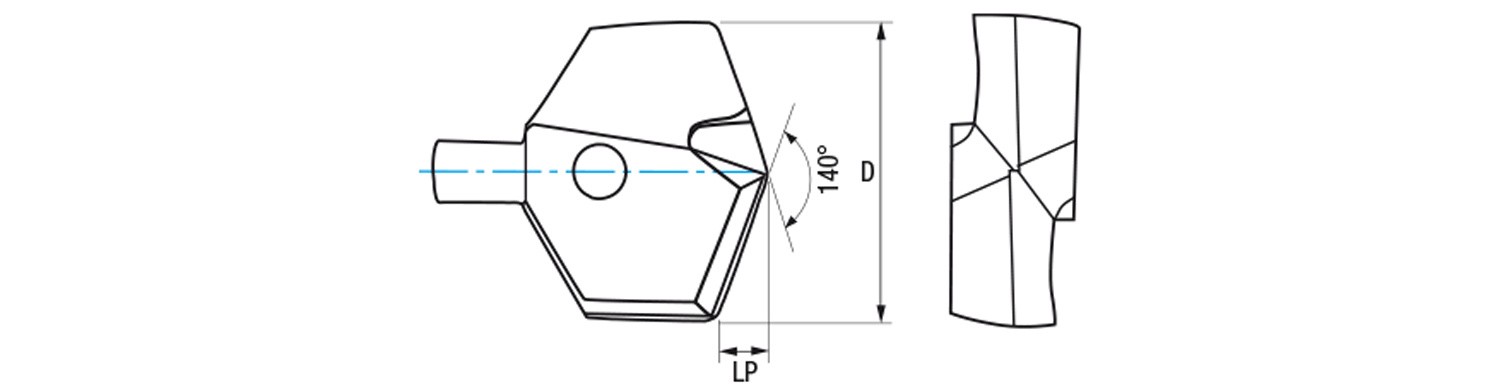

Ángulo Punta: 140º

Operación: Taladrado
Tipo Herramienta: Plaquitas

Referencias

Referencia Modelo Diámetro Corte LP
56461 K 10mm 1.8mm consultar
56449 M 10mm 1.8mm consultar
56469 N 10mm 1.8mm consultar
56443 P 10mm 1.8mm consultar
56478 K 10.2mm 1.9mm consultar
56475 M 10.2mm 1.9mm consultar
56479 N 10.2mm 1.9mm consultar
56472 P 10.2mm 1.9mm consultar
56577 K 10.5mm 1.9mm consultar
56561 M 10.5mm 1.9mm consultar
56580 N 10.5mm 1.9mm consultar
56525 P 10.5mm 1.9mm consultar
56592 K 11mm 2mm consultar
56589 M 11mm 2mm consultar
56595 N 11mm 2mm consultar
56586 P 11mm 2mm consultar
56607 K 11.5mm 2.1mm consultar
56601 M 11.5mm 2.1mm consultar
56613 N 11.5mm 2.1mm consultar
56598 P 11.5mm 2.1mm consultar
56631 K 12mm 2.2mm consultar
56619 M 12mm 2.2mm consultar
56635 N 12mm 2.2mm consultar
56616 P 12mm 2.2mm consultar
56723 K 12.5mm 2.3mm consultar
56705 M 12.5mm 2.3mm consultar
56748 N 12.5mm 2.3mm consultar
56641 P 12.5mm 2.3mm consultar
56282 K 13mm 2.4mm consultar
56279 M 13mm 2.4mm consultar
56285 N 13mm 2.4mm consultar
56273 P 13mm 2.4mm consultar
56884 K 13.5mm 2.5mm consultar
56863 M 13.5mm 2.5mm consultar
56887 N 13.5mm 2.5mm consultar
56751 P 13.5mm 2.5mm consultar
56896 K 14mm 2.5mm consultar
56893 M 14mm 2.5mm consultar
56899 N 14mm 2.5mm consultar
56890 P 14mm 2.5mm consultar
56977 K 14.5mm 2.6mm consultar
56975 M 14.5mm 2.6mm consultar
56980 N 14.5mm 2.6mm consultar
56905 P 14.5mm 2.6mm consultar
57000 K 15mm 2.7mm consultar
56991 M 15mm 2.7mm consultar
57038 N 15mm 2.7mm consultar
56984 P 15mm 2.7mm consultar
57047 K 15.5mm 2.8mm consultar
57044 M 15.5mm 2.8mm consultar
57050 N 15.5mm 2.8mm consultar
57041 P 15.5mm 2.8mm consultar
56301 K 16mm 2.9mm consultar
56298 M 16mm 2.9mm consultar
56307 N 16mm 2.9mm consultar
56295 P 16mm 2.9mm consultar
57059 K 16.5mm 3mm consultar
57056 M 16.5mm 3mm consultar
57062 N 16.5mm 3mm consultar
57053 P 16.5mm 3mm consultar
57068 K 17mm 3.1mm consultar
57067 M 17mm 3.1mm consultar
57071 N 17mm 3.1mm consultar
57065 P 17mm 3.1mm consultar
57080 K 17.5mm 3.2mm consultar
57077 M 17.5mm 3.2mm consultar
57083 N 17.5mm 3.2mm consultar
57074 P 17.5mm 3.2mm consultar
56376 K 18mm 3.3mm consultar
56370 M 18mm 3.3mm consultar
56382 N 18mm 3.3mm consultar
56358 P 18mm 3.3mm consultar
57101 K 18.5mm 3.4mm consultar
57095 M 18.5mm 3.4mm consultar
57107 N 18.5mm 3.4mm consultar
57089 P 18.5mm 3.4mm consultar
57143 K 19mm 3.5mm consultar
57119 M 19mm 3.5mm consultar
57159 N 19mm 3.5mm consultar
57113 P 19mm 3.5mm consultar
57228 K 19.5mm 3.5mm consultar
57166 M 19.5mm 3.5mm consultar
57242 N 19.5mm 3.5mm consultar
57160 P 19.5mm 3.5mm consultar
55045 K 20mm 3.6mm consultar
55001 M 20mm 3.6mm consultar
55057 N 20mm 3.6mm consultar
54998 P 20mm 3.6mm consultar
57260 K 20.5mm 3.7mm consultar
57254 M 20.5mm 3.7mm consultar
57266 N 20.5mm 3.7mm consultar
57248 P 20.5mm 3.7mm consultar
57278 K 21mm 3.8mm consultar
57272 M 21mm 3.8mm consultar
57296 N 21mm 3.8mm consultar
57269 P 21mm 3.8mm consultar
57336 K 21.5mm 3.9mm consultar
57324 M 21.5mm 3.9mm consultar
57348 N 21.5mm 3.9mm consultar
57302 P 21.5mm 3.9mm consultar
55074 K 22mm 4mm consultar
55063 M 22mm 4mm consultar
55078 N 22mm 4mm consultar
55060 P 22mm 4mm consultar
57408 K 22.5mm 4.1mm consultar
57372 M 22.5mm 4.1mm consultar
57420 N 22.5mm 4.1mm consultar
57360 P 22.5mm 4.1mm consultar
57487 K 23mm 4.2mm consultar
57468 M 23mm 4.2mm consultar
57492 N 23mm 4.2mm consultar
57444 P 23mm 4.2mm consultar
57499 K 23.5mm 4.3mm consultar
57498 M 23.5mm 4.3mm consultar
57502 N 23.5mm 4.3mm consultar
57493 P 23.5mm 4.3mm consultar
55108 K 24mm 4.4mm consultar
55096 M 24mm 4.4mm consultar
55117 N 24mm 4.4mm consultar
55090 P 24mm 4.4mm consultar
57516 K 24.5mm 4.5mm consultar
57511 M 24.5mm 4.5mm consultar
57519 N 24.5mm 4.5mm consultar
57508 P 24.5mm 4.5mm consultar
57540 K 25mm 4.5mm consultar
57528 M 25mm 4.5mm consultar
57543 N 25mm 4.5mm consultar
57522 P 25mm 4.5mm consultar
57572 K 25.5mm 4.6mm consultar
57569 M 25.5mm 4.6mm consultar
57575 N 25.5mm 4.6mm consultar
57566 P 25.5mm 4.6mm consultar
55132 K 26mm 4.7mm consultar
55123 M 26mm 4.7mm consultar
55138 N 26mm 4.7mm consultar
55120 P 26mm 4.7mm consultar
57582 K 26.5mm 4.8mm consultar
57578 M 26.5mm 4.8mm consultar
57588 N 26.5mm 4.8mm consultar
57576 P 26.5mm 4.8mm consultar
57623 K 27mm 4.9mm consultar
57609 M 27mm 4.9mm consultar
57626 N 27mm 4.9mm consultar
57603 P 27mm 4.9mm consultar
57632 K 27.5mm 5mm consultar
57631 M 27.5mm 5mm consultar
57634 N 27.5mm 5mm consultar
57629 P 27.5mm 5mm consultar
57639 K 28mm 5.1mm consultar
57637 M 28mm 5.1mm consultar
57641 N 28mm 5.1mm consultar
57635 P 28mm 5.1mm consultar
57681 K 28.5mm 5.2mm consultar
57645 M 28.5mm 5.2mm consultar
57684 N 28.5mm 5.2mm consultar
57644 P 28.5mm 5.2mm consultar
57729 K 29mm 5.3mm consultar
57726 M 29mm 5.3mm consultar
57732 N 29mm 5.3mm consultar
57702 P 29mm 5.3mm consultar
57745 K 29.5mm 5.4mm consultar
57742 M 29.5mm 5.4mm consultar
57748 N 29.5mm 5.4mm consultar
57735 P 29.5mm 5.4mm consultar
55246 K 30mm 5.5mm consultar
55244 M 30mm 5.5mm consultar
55254 N 30mm 5.5mm consultar
55144 P 30mm 5.5mm consultar
57757 K 30.5mm 5.6mm consultar
57754 M 30.5mm 5.6mm consultar
57760 N 30.5mm 5.6mm consultar
57751 P 30.5mm 5.6mm consultar
57769 K 31mm 5.6mm consultar
57766 M 31mm 5.6mm consultar
57772 N 31mm 5.6mm consultar
57763 P 31mm 5.6mm consultar
57781 K 31.5mm 5.7mm consultar
57778 M 31.5mm 5.7mm consultar
57798 N 31.5mm 5.7mm consultar
57775 P 31.5mm 5.7mm consultar
57812 K 32mm 5.8mm consultar
57811 M 32mm 5.8mm consultar
57814 N 32mm 5.8mm consultar
57809 P 32mm 5.8mm consultar
57818 K 32.5mm 5.9mm consultar
57817 M 32.5mm 5.9mm consultar
57820 N 32.5mm 5.9mm consultar
57815 P 32.5mm 5.9mm consultar
55408 K 33mm 6mm consultar
55402 M 33mm 6mm consultar
55417 N 33mm 6mm consultar
55396 P 33mm 6mm consultar
57824 K 33.5mm 6.1mm consultar
57823 M 33.5mm 6.1mm consultar
57826 N 33.5mm 6.1mm consultar
57821 P 33.5mm 6.1mm consultar
57936 K 34mm 6.2mm consultar
57933 M 34mm 6.2mm consultar
57945 N 34mm 6.2mm consultar
57921 P 34mm 6.2mm consultar
57951 K 34.5mm 6.3mm consultar
57950 M 34.5mm 6.3mm consultar
57953 N 34.5mm 6.3mm consultar
57947 P 34.5mm 6.3mm consultar
57959 K 35mm 6.4mm consultar
57956 M 35mm 6.4mm consultar
57960 N 35mm 6.4mm consultar
57954 P 35mm 6.4mm consultar
57965 K 35.5mm 6.5mm consultar
57963 M 35.5mm 6.5mm consultar
57966 N 35.5mm 6.5mm consultar
57962 P 35.5mm 6.5mm consultar
55441 K 36mm 6.6mm consultar
55429 M 36mm 6.6mm consultar
55447 N 36mm 6.6mm consultar
55420 P 36mm 6.6mm consultar
57971 K 36.5mm 6.6mm consultar
57969 M 36.5mm 6.6mm consultar
57972 N 36.5mm 6.6mm consultar
57968 P 36.5mm 6.6mm consultar
57983 K 37mm 6.7mm consultar
57977 M 37mm 6.7mm consultar
57989 N 37mm 6.7mm consultar
57974 P 37mm 6.7mm consultar
57995 K 37.5mm 6.8mm consultar
57992 M 37.5mm 6.8mm consultar
57999 N 37.5mm 6.8mm consultar
57990 P 37.5mm 6.8mm consultar
58035 K 38mm 6.9mm consultar
58023 M 38mm 6.9mm consultar
58052 N 38mm 6.9mm consultar
58014 P 38mm 6.9mm consultar
58061 K 38.5mm 7mm consultar
58056 M 38.5mm 7mm consultar
58064 N 38.5mm 7mm consultar
58055 P 38.5mm 7mm consultar
58092 K 39mm 7.1mm consultar
58083 M 39mm 7.1mm consultar
58107 N 39mm 7.1mm consultar
58067 P 39mm 7.1mm consultar
58128 K 39.5mm 7.2mm consultar
58119 M 39.5mm 7.2mm consultar
58131 N 39.5mm 7.2mm consultar
58110 P 39.5mm 7.2mm consultar
58159 K 39.99mm 7.3mm consultar
58156 M 39.99mm 7.3mm consultar
58165 N 39.99mm 7.3mm consultar
58143 P 39.99mm 7.3mm consultar
