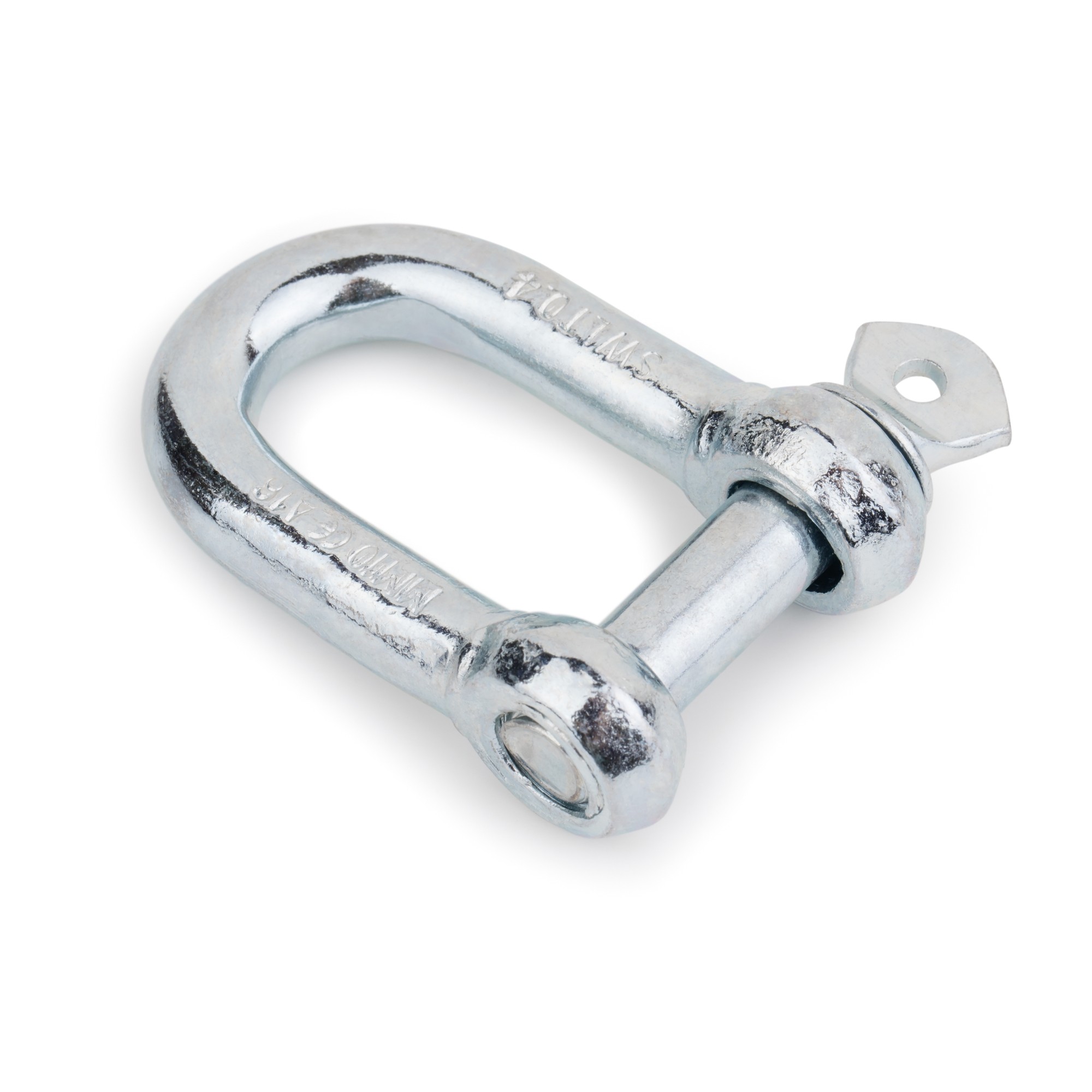

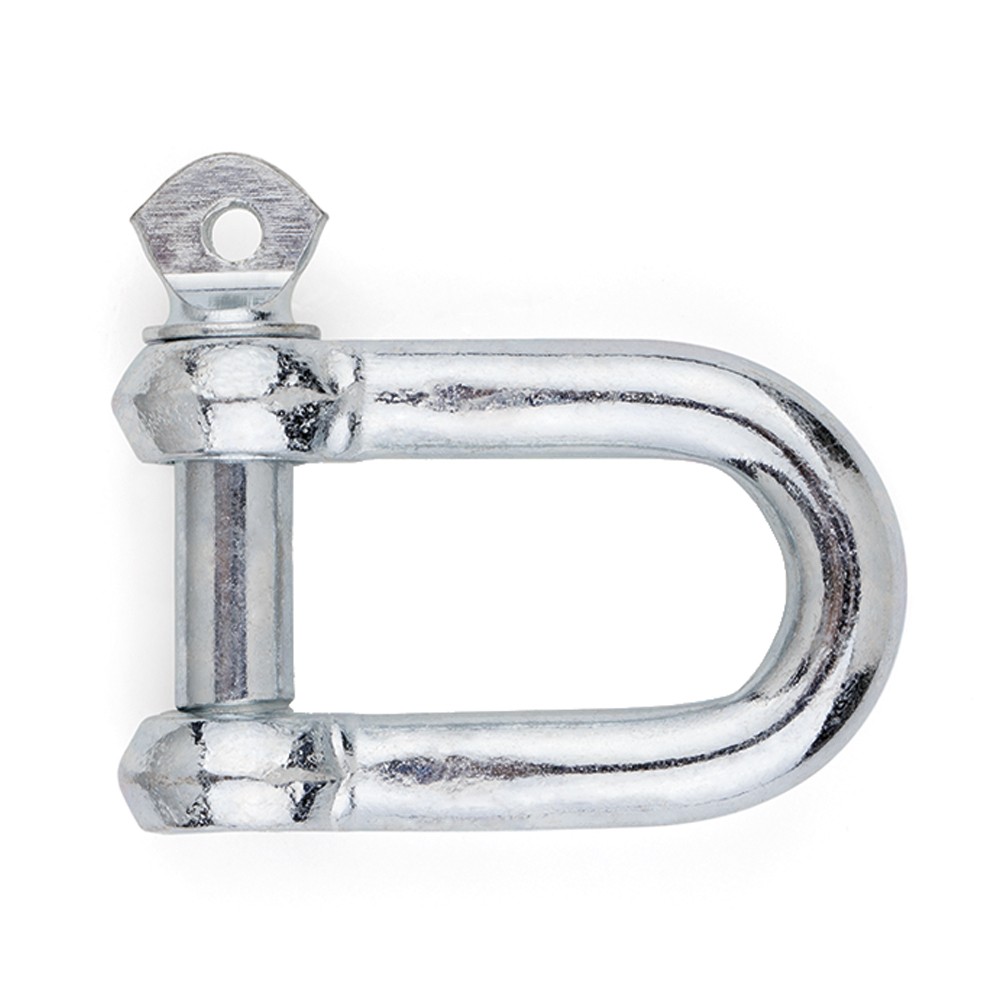

GR-Z [CP] Grillete recto. Zincado
![GR-Z [CP] Grillete recto. Zincado](https://www.dateriumsystem.com/appfiles/clientes/5/catalogo/gr-z_1-1_rf280x240.jpg)
Material/Recubrimiento: Zincado
Sector de aplicación: Naval, Náutico
Referencias
| Referencia | Medida | L | A x B | L1 | L2 | Diámetro (mm) | Ø Ojo | H1 | M (”) | M x L | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GRZ05 | M5(Ø10) | 10 | 10 x 20 | 5 | 11 | 5 | 10 | 21 | M5 | M5(10) | consultar |
| GRZ06 | M6(Ø12) | 12 | 12 x 25 | 6 | 14 | 6 | 12 | 28 | M6 | M6(12) | consultar |
| GRZ08 | M8(Ø16) | 16 | 16 x 32 | 8 | 18 | 8 | 16 | 36 | M8 | M8(16) | consultar |
| GRZ10 | M10(Ø19) | 19 | 19 x 39 | 10 | 20 | 10 | 19 | 43 | M10 | M10(19) | consultar |
| GRZ11 | M11(Ø22) | 22 | 22 x 44 | 11 | 24 | 11 | 22 | 50 | M11 | M11(22) | consultar |
| GRZ12 | M12(Ø25) | 25 | 25 x 49 | 12 | 28 | 12 | 25 | 57 | M12 | M12(25) | consultar |
| GRZ14 | M14(Ø28) | 28 | 28 x 56 | 14 | 30 | 14 | 28 | 64 | M14 | M14(28) | consultar |
| GRZ16 | M16(Ø32) | 32 | 32 x 64 | 16 | 33 | 16 | 32 | 72 | M16 | M16(32) | consultar |
| GRZ18 | M18(Ø36) | 36 | 36 x 70 | 18 | 33,5 | 18 | 36 | 74 | M18 | M18(36) | consultar |
| GRZ20 | M20(Ø38) | 38 | 38 x 78 | 20 | 40 | 20 | 38 | 86 | M20 | M20(38) | consultar |
| GRZ22 | M22(Ø44) | 44 | 44 x 88 | 22 | 50 | 22 | 44 | 91 | M22 | M22(44) | consultar |
| GRZ25 | M25(Ø50) | 50 | 50 x 97 | 24 | 47,5 | 24 | 50 | 99 | M25 | M25(50) | consultar |
| GRZ28 | M28(Ø56) | 56 | 56 x 113 | 28 | 68 | 28 | 56 | 129 | M28 | M28(56) | consultar |
| GRZ32 | M32(Ø64) | 64 | 64 x 128 | 32 | 73 | 32 | 64 | 143 | M32 | M32(64) | consultar |
| GRZ36 | M36(Ø70) | 70 | 70 x 144 | 36 | 80 | 36 | 70 | 155 | M36 | M36(70) | consultar |
| GRZ38 | M38(Ø76) | 76 | 76 x 152 | 38 | 85 | 38 | 76 | 171 | M38 | M38(76) | consultar |
| GRZ42 | M42(Ø76) | 76 | 76 x 168 | 42 | 90 | 42 | 76 | 185 | M42 | M42(76) | consultar |
| GRZ45 | M45(Ø80) | 80 | 80 x 180 | 45 | 98 | 45 | 80 | 202 | M45 | M45(80) | consultar |
| GRZ50 | M50(Ø90) | 90 | 90 x 202 | 50 | 108 | 50 | 90 | 225 | M50 | M50(90) | consultar |
| GRZ56 | M56(Ø100) | - | - | - | - | - | 100 | - | M56 | M56(100) | consultar |
| GRZ63 | M63(Ø110) | - | - | - | - | - | 110 | - | M63 | M63(110) | consultar |
Documentos PDF
