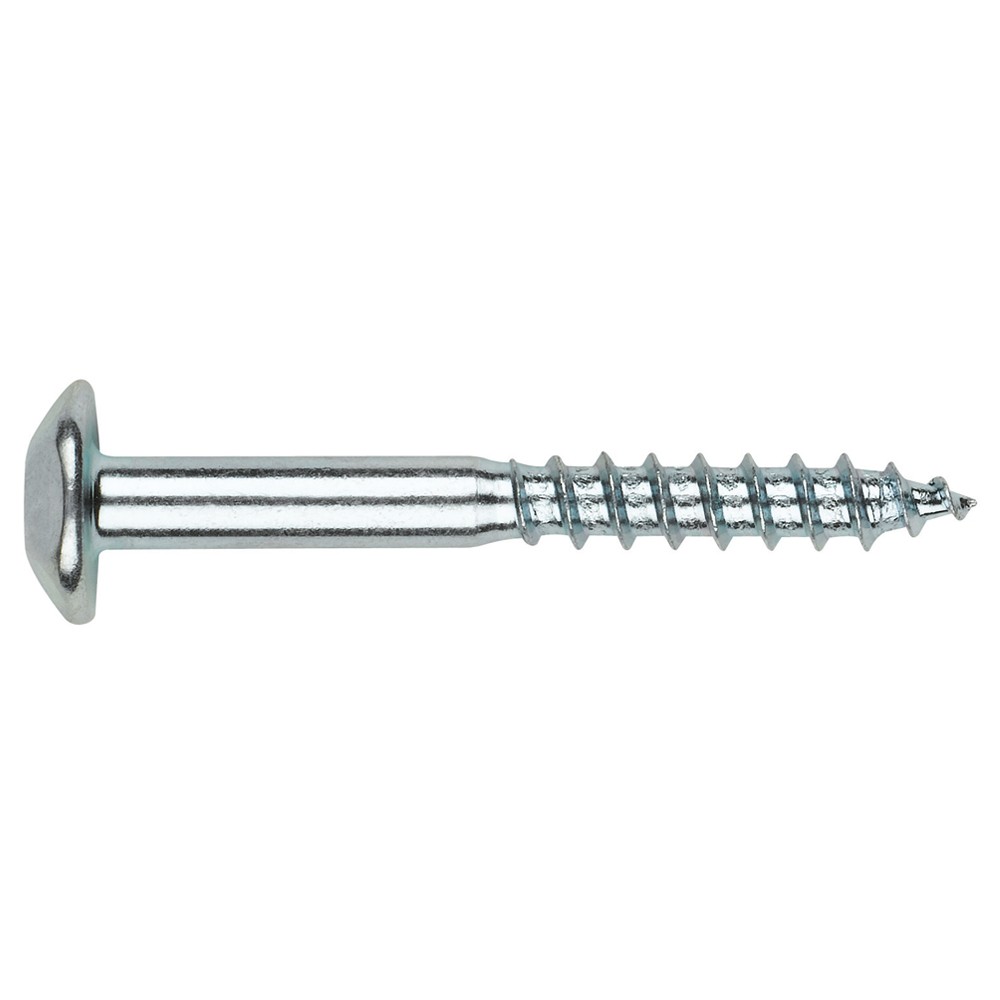

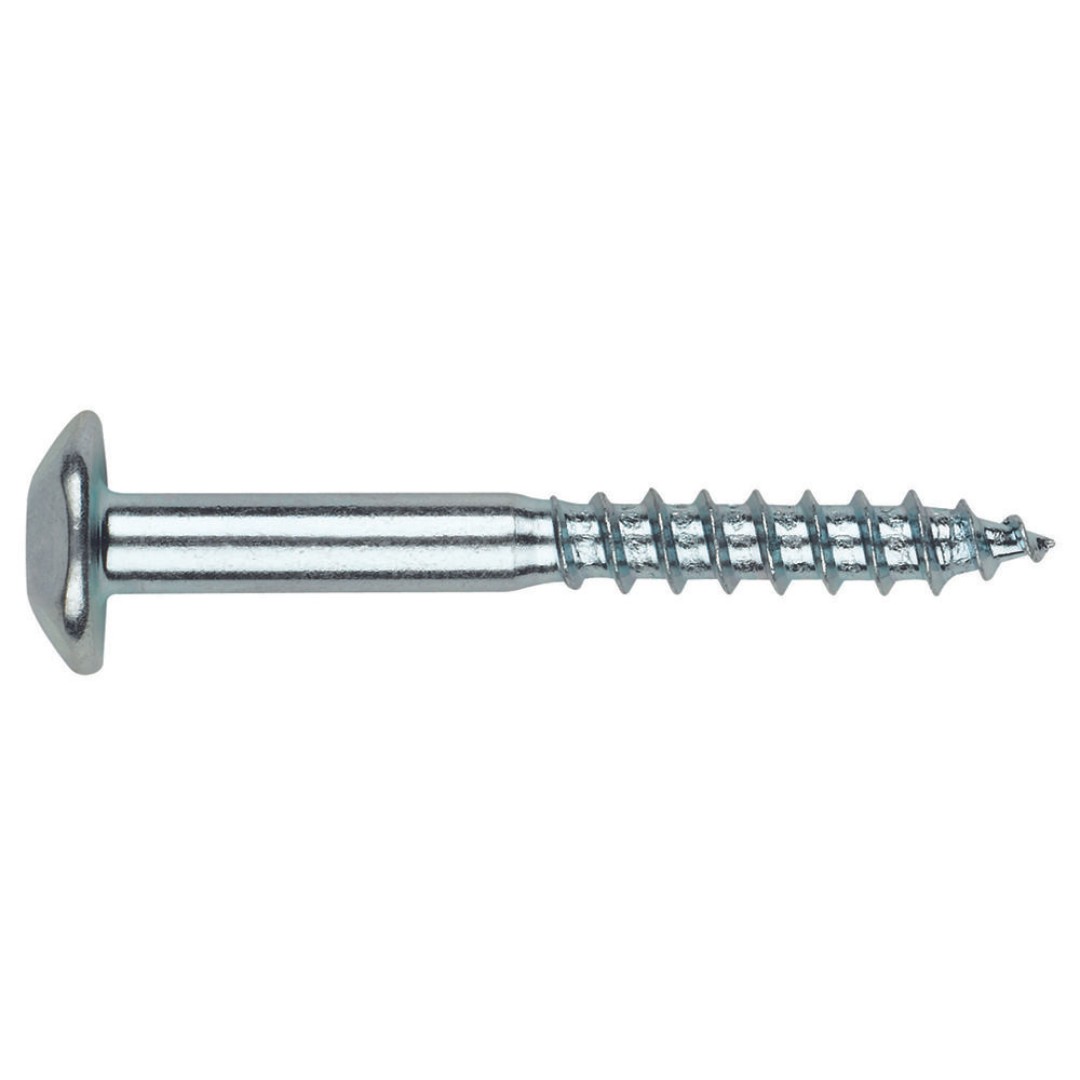

INV Z [CP] Tornillo inviolable. Huella TX. Zincado
![INV Z [CP] Tornillo inviolable. Huella TX. Zincado](https://www.dateriumsystem.com/appfiles/clientes/5/catalogo/inv_z_1-1_rf280x240.jpg)
Material/Recubrimiento: Zincado
Sector de aplicación: Carpinteria madera
Referencias

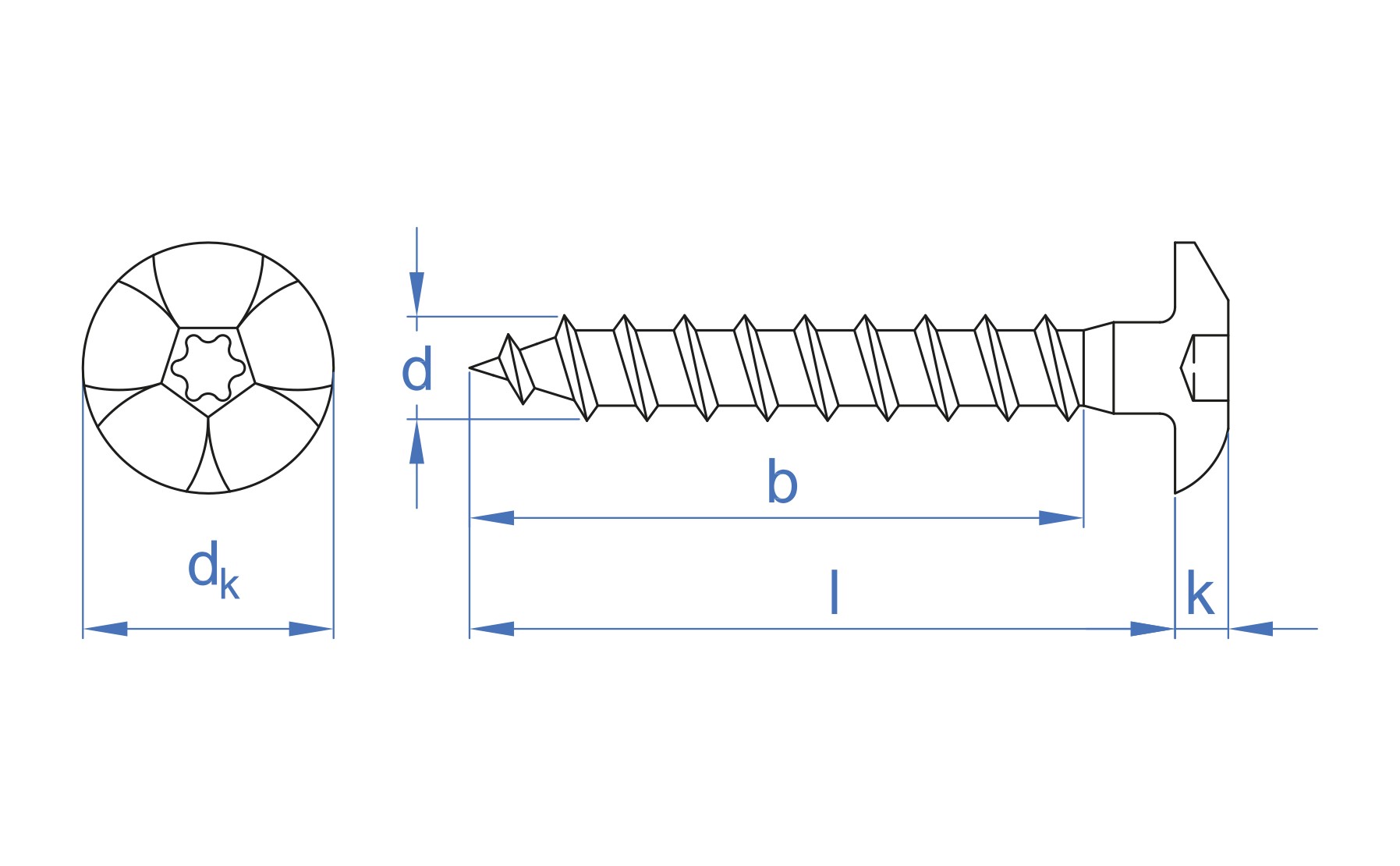

| Referencia | Medida | Nº Huella | L | Llave de instalación | Espesor máx. a fijar | Ø Cabeza | Espesor cabeza | M (”) | M x L | Longitud rosca total | Importe | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INVZ6040 | 6 x 40 | TX40 | 40 | TX40 | 22.6 | 16.65 | 4 | 6 | 6 x 40 | - | ||
| INVZ6050 | 6 x 50 | TX40 | 50 | TX40 | 32.6 | 16.65 | 4 | 6 | 6 x 50 | - | ||
| INVZ6060 | 6 x 60 | TX40 | 60 | TX40 | 42.6 | 16.65 | 4 | 6 | 6 x 60 | - | consultar | |
| INVZ6070 | 6 x 70 | TX40 | 70 | TX40 | 52.6 | 16.65 | 4 | 6 | 6 x 70 | - | consultar | |
| INVZ7030 | 7 x 30 | TX40 | 30 | TX40 | 9.6 | 16.65 | 5 | 7 | 7 x 30 | 25.6 | ||
| INVZ7040 | 7 x 40 | TX40 | 40 | TX40 | 19.6 | 16.65 | 5 | 7 | 7 x 40 | - | consultar | |
| INVZ7050 | 7 x 50 | TX40 | 50 | TX40 | 29.6 | 16.65 | 5 | 7 | 7 x 50 | - | consultar | |
| INVZ7060 | 7 x 60 | TX40 | 60 | TX40 | 39.6 | 16.65 | 5 | 7 | 7 x 60 | - | consultar | |
| INVZ7070 | 7 x 70 | TX40 | 70 | TX40 | 49.6 | 16.65 | 5 | 7 | 7 x 70 | - | consultar | |
| INVZ7080 | 7 x 80 | TX40 | 80 | TX40 | 59.6 | 16.65 | 5 | 7 | 7 x 80 | - | consultar | |
| INVZ7090 | 7 x 90 | TX40 | 90 | TX40 | 69.6 | 16.65 | 5 | 7 | 7 x 90 | - | consultar | |
| INVZ7105 | 7 x 105 | TX40 | 105 | TX40 | 83,73 | 16.65 | 5 | 7 | 7 x 105 | - | consultar | |
| INVZ7120 | 7 x 120 | TX40 | 120 | TX40 | 98.73 | 16.65 | 5 | 7 | 7 x 120 | - | consultar | |
| INVZ7140 | 7 x 140 | TX40 | 140 | TX40 | 118.73 | 16.65 | 5 | 7 | 7 x 140 | - | consultar | |
| INVZ7165 | 7 x 165 | TX40 | 165 | TX40 | 143.73 | 16.65 | 5 | 7 | 7 x 165 | - | consultar | |
| INVZ7205 | 7 x 205 | TX40 | 205 | TX40 | 183.73 | 16.65 | 5 | 7 | 7 x 205 | - | consultar |
